PURCHASE PRODUCTS
Tailored Micro Diffuser (TMD®) Kits



Circular FWHM Angles Kit: $250.00
Select a Size

Elliptical FWHM Angles Kit: $250.00
Select a Size

Tailored Micro Diffuser (TMD) Kits on 5/64" Glass Substrate:

WaveFront Technology, Inc. (WFT) manufactures Tailored Micro-diffusers (TMD™) in a wide range of angular diffusion patterns. TMD™ are a surface relief microstructures engineered to spread collimated light into a predetermined field-of-view (FOV) or pattern of diffused light, they are optically very efficient (90%+ transmission) and their properties can be tailored.

TMD™ films are now available for immediate delivery from WFT in two standard sample formats Kits and Packs as specified below:

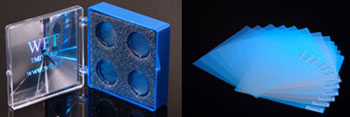

TMD™ Kits on 5/64" (clear view low iron) Glass Substrate:

  • TMD™ kits come in various circular and elliptical angles.
  • Each kit includes 4 different FWHM angles
  • Overall Size = 0.970"
  • Clear aperture 0.850"







  Tailored Micro Diffuser (TMD®) Packs



Circular FWHM Angles Offered Pack: $200.00
Choose Thickness
Select a Size

Elliptical FWHM Angles Offered Pack: $200.00
Choose Thickness
Select a Size

FWHM Angles Custom Pack: $250.00
FWHM Angles Custom Pack
0.002" THICKNESS
Custom (Circular) Angle 1
Custom (Circular) Angle 2
Custom (Elliptical) Angle 3
Custom (Elliptical) Angle 4
FWHM Angles Custom Pack
0.005" THICKNESS
Custom (Circular) Angle 1
Custom (Circular) Angle 2
Custom (Elliptical) Angle 3
Custom (Elliptical) Angle 4

TMD™ Packs on either 0.005" or 0.002" PET Substrate Thicknesses:
  • TMD™ packs come in various circular and elliptical angles.
  • Each pack includes 4 different FWHM angles
  • Overall Aperture Size = 10"x10"
